2011年3月7日

[光碟與燒錄] DAEMON Tools Lite ( with SPTD ) 好用免費的虛擬光碟工具

2015.12.31 更新 : 改推薦使用  Alcohol 52%

以前介紹過 DAEMON Tools Lite ,真的是個好用免費的虛擬光碟工具
不過現在的安裝步驟與介面不太一樣,索性再寫一篇
順便放上 SPTD 是什麼東西 =w=

版本 4.40.2 (with SPTD 1.76) / 2011.01.20
官網 DAEMON Tools
說明 Download DTLite4402-0131.exe 直接下載
性質 freeware/多國/Windows XP/Vista/7
大小 10.6 MB
MD5 3CAD7A0A3D5C110A6E70F3D64A32A44F
SHA-1 C7D088B43F3994F5579FA81206C43F0E41EF8265






個人使用請選擇免費授權




勾選你需要的 DAEMON Tools Lite 功能來安裝

DAEMON Tools Lite 瀏覽器工具列不建議安裝,除非您真的很需要它 =3=

SPTD 進階模擬,DAEMON 很簡單說了一句"使用進階模擬功能需要 SCSI 傳遞直接底層"
也就是有需要 RMPS SafeDisk SecuROM LaserLock 之類的模擬功能的請安裝此項

SPTD wiki 的說明如下SCSI Pass Through Direct (usually abbreviated as SPTD, filename "sptd.sys") is a device driver developed by Duplex Secure Ltd. that provides a new method of access to storage devices. The SPTD API is not open to the public.
DuplexSecure FAQ 說明如下,也有提到 SPTD 技術只支援 Windows 2000 之後的版本SPTD is a new method of access to storage devices that was developed by Duplex Secure Ltd.
Basically SPTD is similar to other access layers used by other programs (eg. ASPI from Adaptec, or standard SPTI from Microsoft) who provide access to storage devices but it has a lot more features that make this interface unique.


如果安裝SPTD後出現問題,或是需要移除SPTD,官方也有說明
If your system has some problems with SPTD installation you can do as follows:
If your system is already running then go to step 2 directly. Otherwise start from step 1.
   Step 1. Boot in safe mode and press ESC key when you see on bottom line of display: "Press ESC to cancel loading SPTD.sys". This will abort loading of SPTD layer.
Step 2. Find "HKEY_LOCAL_MACHINE\System\CurrentControlSet\ Services\sptd" registry key in REGEDIT and set DWORD Start value to 4 (i.e. disabled).
Step 3. Reboot again in normal mode and check if your issue is solved.
To reenable SPTD restore the DWORD Start value back to '0' and reboot your computer.remove SPTD driver "SPTDinst-v177-x86.exe" "SPTDinst-v177-x64.exe"

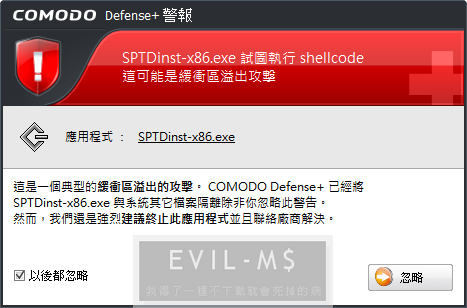

如果有安裝 SPTD 功能的,有些防毒軟體會出現緩衝區溢位警告或誤判為病毒,一般來說,
安裝 Alcohol 酒精之類的虛擬光軟體都會用到此技術,如果安裝檔來源是官方下載的軟體
MD5 或是 SHA-1 的 Hash table 雜湊值也和官方比對無誤,那麼就可以放心選擇"忽略" SPTDinst 緩衝區溢出攻擊 ( 試圖執行 shellcode )
緩衝區 wiki 說明如下緩衝區溢位(Buffer overflow),是指向緩衝區寫入使之溢位的內容,來拿到作業系統的root許可權,針對C程式設計缺陷進行攻擊。
緩衝區溢位原指在C代碼中出現疏漏,以致出現在電腦內部記憶體中,當某個資料,超過了處理常式限制的範圍時,該資料就會造成程式的溢位。

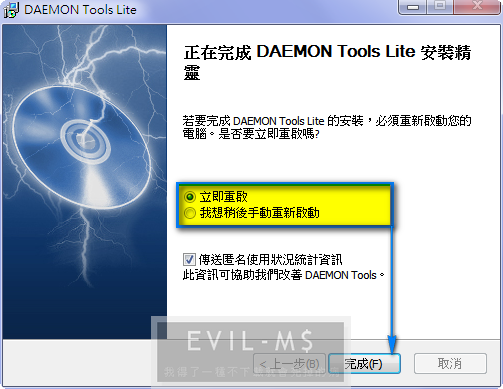

選擇好是否"重新啟動",按下"完成"


重新啟動電腦後,Defense+跳出警報的話
同上,DTLite.exe 的緩衝區溢出攻擊可以忽略


前面提到的進階模擬功能 RMPS SafeDisk SecuROM LaserLock 就在這邊,
如有需要請自行研究 = =+




DAEMON 安裝成功後就開始使用吧,超簡單( ̄▽ ̄)y
將要掛載的檔案拖曳到視窗中就好了
可以一次拖曳多個檔案到映像檔目錄下喔
卸載光碟只要去按一下圖中的按鈕就可以啦
支援 *.mdx, *.mds/*.mdf, *.iso, *.b5t, *.b6t, *.bwt, *.ccd, *.cdi, *.cue, *.nrg, *.pdi, *.isz; 等映像檔
雖然 Alcohol 52% 也是可以,只是 DAEMON Tools Lite 感覺比較簡單不笨重


按下"新增裝置"可以多來幾個虛擬光碟機哦


其他的 Daemon 詳細版本比較如下
http://www.daemon-tools.cc/chn/products/compare
http://www.daemon-tools.cc/eng/products/compare

Daemon Tools Lite
如上所介紹,是免費的,作於商業用途要付費

Daemon Tools Pro Standard
標準版多編輯管理映像檔、Blu-ray到硬碟的功能…

Daemon Tools Pro Advanced
進階版比標準版多vIDE(虛擬IDE)、Blu-ray轉換的功能…
